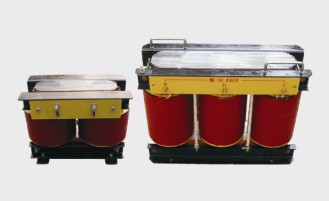

·Introduction:
It is widely used in the situation that requires electric isolation between load power and power network in electric power system and mining industry. It is a isolation device that can anti-interfere the power and power network of automatic control system, telecommunication instruction network, computer-control center and precision testing experiment system.
·Technical parameter:
Capcity: 5, 10, 20, 30, 50, 75, 100, 125, 160, 200, 250, 315, 500KVA;
Working voltage(primary/secondary): 220/110V, 220/220V, 220/380V,
380/220V, 380/380V;
No-load current: ＜5%;
Inpedance voltage: ＜7%;
Enviromental condition: Temperature: -5℃～40℃;
Humidity: ＜75%RH;
Ways of potential isolation: single and double isolation. |
