·Introduction:

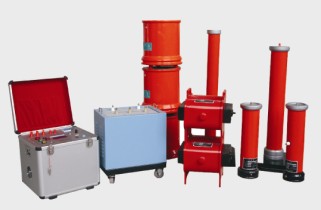

Adjustable frequency series resonance device applies to the connection and prophylactic test of capacitive character testerwith big capacity and high voltage, such as power transformer, power generation unit, GIS, high-voltage cross-linked cables, mutual inductor, adapter pipe, etc. Those devices can be specially made according to clients requests.
·Technical parameter:
Electric power: 380V±10%, three-phase 50HZ;
Rated output voltage: 0~1000KV;
Capacity: 0~6400KVA;
Operating frequency range: 30~300HZ;
Resolution: 0.01HZ;
Instablity: ≤0.05%;
Output waveform: sinusoidal wave, waveform deviation factor : ≤1%;
Evironment condition: Tempreature: -15℃~45℃;
Humidity: ≤ 90%RH;
The system has automatic protection function: overpressure, overcurrent, discharging, etc. |
